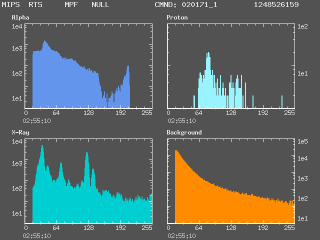

Mars Pathfinder APXS Spectra A1526159.TAB
Target: A_10
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
PDS Label Parameters
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
|
| Product ID | APX_EDR-1248526159-1-020171 | Duration | 02:55:10 |
| Start SCLK | 1248491110 | Cmd. Seq. Num | 20171 |
| Stop SCLK | 1248501919 | Accum. Count | 1 |
| Planet Day Number | 21 | APXS Mech. Angle | -130.5600 |
| Start Time | 1997-07-25T03:05:06.953Z | Sensor State | 512 |
| Stop Time | 1997-07-25T06:05:15.980Z | Rover Heading | 39918 |
| Packet SCLK | 1248491110 | Rover Pos. | (3.4860, -0.7400) |
| Expected Packets | 2 | Rover Lin. Accel. | (16.0000, 30.0000) |
| Received Packets | 2 | ||
| Alpha Preamp Temp | (-0.0784, -4.7407, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
| Xray Preamp Temp | (-71.5670, -74.6752, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
