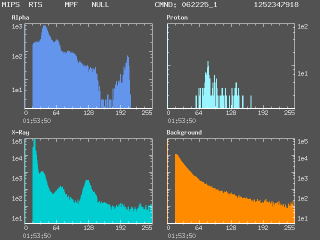

Mars Pathfinder APXS Spectra A1347918.TAB
Target: A_19
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
PDS Label Parameters
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
|
| Product ID | APX_EDR-1252347918-1-062225 | Duration | 01:53:50 |
| Start SCLK | 1252339086 | Cmd. Seq. Num | 62225 |
| Stop SCLK | 1252347908 | Accum. Count | 1 |
| Planet Day Number | 64 | APXS Mech. Angle | -98.5600 |
| Start Time | 1997-09-07T15:54:28.313Z | Sensor State | 768 |
| Stop Time | 1997-09-07T18:21:21.806Z | Rover Heading | 16215 |
| Packet SCLK | 1252339086 | Rover Pos. | (-4.9420, -3.8760) |
| Expected Packets | 2 | Rover Lin. Accel. | (106.0000, 113.0000) |
| Received Packets | 2 | ||
| Alpha Preamp Temp | (122.6960, -17.1735, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
| Xray Preamp Temp | (-10.9571, -52.9178, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
