Last updated: 16 July 1997, 3:30 pm PDT
Mission Sequence Planner: RW/AHM
Rover Driver: BC/JM
| SCET | PDT | LST | ||
|---|---|---|---|---|
| Expected uplink time: | ||||
| Nominal sequence activation time: | 198 04:57:00 | 07:00 | ||
| Nominal sequence abort time: | 199 05:36:00 | Sol 14 07:00 | (during command [13197]) |
Previous sequence 51210C will nominally be aborted at command [12123]
MISSION SEQUENCE PLANNER REPORT
SEQUENCE DESCRIPTION

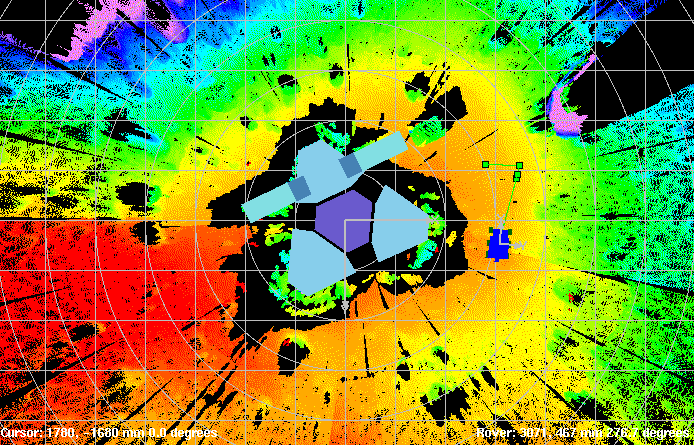

| X Position (m) | Y Position (m) | Heading (deg) | |
|---|---|---|---|
| At Sequence Start** | 2.804 | -1.125 | 74 |
| At End of Sol 13* (predicted) | 3.071 | 0.467 | 277 |
** Vehicle positions are in surface-fixed frame
* at completion of planned SOL's traverse activities assuming nominal execution
| Image Type | X (m) | Y (m) | Z (m) | Imaging Opportunity |
|---|---|---|---|---|
| End-of-Day Ops | 3.196 | -0.382 | 0.282 | |
| End-of-Day Ops | 3.047 | -1.050 | 0.282 | |
| End-of-Day Ops | 2.980 | 0.801 | 0.282 | |
| End-of-Day Ops | 3.103 | 0.152 | 0.282 |
Sol 13 Downlink (by APID)
Predicted telemetry volume generated between activation of sequence 51310B from
nominal start to nominal abort [13197]
Command Range Processed: First Command:[13001] Time Executed: 1247806627 198 04:57:00 07:01:11 Final Command:[13197] Time Executed: 1247895380 199 05:36:15 07:00:51 SUMMARY BY TELEMETRY APID:
| APID | Name | Predicted #Pkts | Predicted #Mbits |
|---|---|---|---|
| 4 | Health Status | 29 | 0.06751 |
| 5 | Ops/Engr | 94 | 0.08278 |
| 6 | Sequence Status | 3 | 0.00094 |
| 7 | Error Reports | 0 | 0.00000 |
| 8 | Science Imaging | 512 | 7.86066 |
| 9 | Technology Imaging | 242 | 3.65436 |
| 10 | Lander Imaging | 0 | 0.00000 |
| 12 | APXS Results | 0 | 0.00000 |
| 23 | Priority Ops/Engr. | 0 | 0.00000 |
| 24 | Auto Imaging | 0 | 0.00000 |
| 25 | Ops Imaging | 102 | 1.50528 |
| 29 | Traverse Reporting | 13 | 0.10557 |
| TOTAL | 995 | 13.27710 |
SEQUENCE IMPLEMENTATION REPORT
RECOMENDATION:
SCIENCE/TECHNOLOGY OBJECTIVES REPORT
| Image Log # | Status | Command | Image Type | APID | Camera | Exposure | Compression | Rows | Columns |
|---|---|---|---|---|---|---|---|---|---|
| S13-1 | ACCEPTED | [13078] | tech | 9 | rear | auto | N | 50-275 | 220-400 |
| S13-1 | ACCEPTED | [13082] | tech | 9 | rear | auto | N | 50-250 | 0-145 |
| S13-1 | ACCEPTED | [13083] | tech | 9 | rear | auto | N | 50-250 | 145-290 |
| S13-1 | ACCEPTED | [13084] | tech | 9 | rear | auto | N | 50-250 | 290-435 |
| S13-1 | ACCEPTED | [13089] | tech | 9 | rear | auto | N | 50-250 | 0-118 |
| S13-1 | ACCEPTED | [13090] | tech | 9 | rear | auto | N | 50-250 | 118-273 |
| S13-1 | ACCEPTED | [13091] | tech | 9 | rear | auto | N | 50-250 | 273-356 |
| S13-1 | ACCEPTED | [13092] | tech | 9 | rear | auto | N | 50-250 | 356-474 |
| S13-1 | ACCEPTED | [13106] | tech | 9 | right | auto | N | 230-400 | 400-718 |
| S13-1 | ACCEPTED | [13113] | tech | 9 | left | auto | N | 252-488 | 474-764 |
| S13-1 | ACCEPTED | [13114] | tech | 9 | right | auto | N | 158-488 | 400-718 |
| ACCEPTED | [13138] | science | 8 | left | auto | N | 1-243 | 0-255 | |
| ACCEPTED | [13139] | science | 8 | left | auto | N | 1-243 | 255-510 | |
| ACCEPTED | [13140] | science | 8 | left | auto | N | 1-243 | 510-768 | |
| ACCEPTED | [13141] | science | 8 | left | auto | N | 243-492 | 0-255 | |
| ACCEPTED | [13142] | science | 8 | left | auto | N | 243-492 | 255-510 | |
| ACCEPTED | [13143] | science | 8 | left | auto | N | 243-492 | 510-768 | |
| ACCEPTED | [13146] | science | 8 | right | auto | N | 1-243 | 0-255 | |
| ACCEPTED | [13147] | science | 8 | right | auto | N | 1-243 | 255-510 | |
| ACCEPTED | [13148] | science | 8 | right | auto | N | 1-243 | 510-768 | |
| ACCEPTED | [13149] | science | 8 | right | auto | N | 243-492 | 0-255 | |
| ACCEPTED | [13150] | science | 8 | right | auto | N | 243-492 | 255-510 | |
| ACCEPTED | [13151] | science | 8 | right | auto | N | 243-492 | 510-768 | |
| S13-4 | ACCEPTED | [13156] | science | 8 | left | auto | N | 96-375 | 193-576 |
| S13-4 | ACCEPTED | [13158] | science | 8 | right | auto | N | 96-375 | 193-576 |
| ACCEPTED | [13168] | ops | 25 | rear | auto | N | 46-194 | 266-474 | |
| ACCEPTED | [13169] | ops | 25 | rear | auto | N | 194-342 | 266-474 | |
| ACCEPTED | [13170] | ops | 25 | rear | auto | N | 342-490 | 266-474 | |
| ACCEPTED | [13171] | ops | 25 | rear | auto | N | 46-194 | 474-683 | |
| ACCEPTED | [13172] | ops | 25 | rear | auto | N | 194-342 | 474-683 | |
| ACCEPTED | [13173] | ops | 25 | rear | auto | N | 342-490 | 474-683 | |
| APXS Log # | Status | Time (UTC) | Command # | APXS Command |
|---|---|---|---|---|
| MAE Log # | Status | Time (UTC) | Command # | MAE Command |
|---|---|---|---|---|
| S13-3 | ACCEPTED | 198 04:57:12 | [13007] | Set Parameter: dust_cvr to 10 |
| S13-3 | ACCEPTED | 198 04:57:16 | [13008] | MAE Experiment |
| S13-3 | ACCEPTED | 198 05:28:26 | [13015] | Set Parameter: dust_cvr to 10 |
| S13-3 | ACCEPTED | 198 05:28:30 | [13016] | MAE Experiment |
| S13-3 | ACCEPTED | 198 07:01:12 | [13037] | Set Parameter: dust_cvr to 10 |
| S13-3 | ACCEPTED | 198 07:01:16 | [13038] | MAE Experiment |
| S13-3 | ACCEPTED | 198 08:08:02 | [13057] | Set Parameter: dust_cvr to 10 |
| S13-3 | ACCEPTED | 198 08:08:06 | [13058] | MAE Experiment |
| S13-3 | ACCEPTED | 198 10:05:17 | [13131] | Set Parameter: dust_cvr to 800 |
| S13-3 | ACCEPTED | 198 10:05:21 | [13132] | MAE Experiment |
| S13-3 | ACCEPTED | 198 12:08:35 | [13179] | Set Parameter: dust_cvr to 800 |
| S13-3 | ACCEPTED | 198 12:08:39 | [13180] | MAE Experiment |
| WAE Log # | Status | Time (UTC) | Command # | WAE Command |
|---|---|---|---|---|
| Soil Log # | Status | Time (UTC) | Command # | Soil Mechanics Command |
|---|---|---|---|---|
| S13-1 | ACCEPTED | 198 08:28:25 | [13079] | Soil Mechanics (motor:5, counts:500, cycles:4) |
| S13-1 | ACCEPTED | 198 08:57:55 | [13094] | Soil Mechanics (motor:1, counts:500, cycles:1) |
| S13-1 | ACCEPTED | 198 08:58:16 | [13095] | Soil Mechanics (motor:3, counts:-22, cycles:1) |
| S13-1 | ACCEPTED | 198 08:58:28 | [13096] | Soil Mechanics (motor:1, counts:500, cycles:1) |
| S13-1 | ACCEPTED | 198 08:58:49 | [13097] | Soil Mechanics (motor:3, counts:-22, cycles:1) |
| S13-1 | ACCEPTED | 198 08:59:01 | [13098] | Soil Mechanics (motor:1, counts:500, cycles:1) |
| S13-1 | ACCEPTED | 198 08:59:22 | [13099] | Soil Mechanics (motor:3, counts:-22, cycles:1) |
| S13-1 | ACCEPTED | 198 08:59:34 | [13100] | Soil Mechanics (motor:1, counts:500, cycles:1) |
| S13-1 | ACCEPTED | 198 08:59:55 | [13101] | Soil Mechanics (motor:3, counts:-22, cycles:1) |
| S13-2 | ACCEPTED | 198 09:41:17 | [13126] | Soil Mechanics (motor:5, counts:500, cycles:4) |
PRESS RELEASE
TBD
Summary of Planned Rover Activities for Sol 13:
| PDT | MLST | Rover Acivity |
|---|---|---|
| 21:57 | 07:01 | Sequence 51310 MARS |
| 21:57 | 07:01 | Begin MAE experiment |
| 22:28 | 07:31 | Begin MAE experiment |
| 00:01 | 09:02 | Begin MAE experiment |
| 01:07 | 10:07 | Begin MAE experiment |
| 01:08 | 10:07 | Move to soil site |
| 01:23 | 10:22 | Soil mechanics experiment |
| 01:29 | 10:28 | Rear image after dig |
| 01:45 | 10:43 | Image after exiting dig |
| 02:37 | 11:34 | Move toward Scooby Doo |
| 03:05 | 12:01 | Begin MAE experiment |
| 03:06 | 12:02 | full front left mosaic |
| 03:44 | 12:39 | full front right mosaic |
| 04:24 | 13:18 | Surface mapping FL image |
| 04:34 | 13:28 | Surface mapping FR image |
| 04:45 | 13:38 | APXS RC mosaic img med retract |
| 05:08 | 14:01 | Begin MAE experiment |
