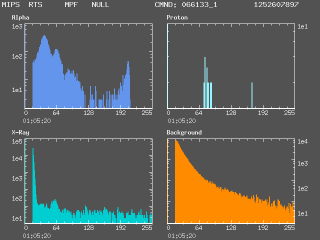

Mars Pathfinder APXS Spectra A1607897.TAB
Target: A_21
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
PDS Label Parameters
Click to download: full resolution TIFF image or PDS binary data file.
|
|
|
|
| Product ID | APX_EDR-1252607897-1-066133 | Duration | 01:05:20 |
| Start SCLK | 1252603692 | Cmd. Seq. Num | 66133 |
| Stop SCLK | 1252607887 | Accum. Count | 1 |
| Planet Day Number | 67 | APXS Mech. Angle | -1.2800 |
| Start Time | 1997-09-10T17:24:10.503Z | Sensor State | 0 |
| Stop Time | 1997-09-10T18:34:05.513Z | Rover Heading | 23681 |
| Packet SCLK | 1252603692 | Rover Pos. | (-4.3920, -3.6800) |
| Expected Packets | 2 | Rover Lin. Accel. | (28.0000, 56.0000) |
| Received Packets | 2 | ||
| Alpha Preamp Temp | (-9.4030, -20.2817, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
| Xray Preamp Temp | (-40.4850, -60.6883, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000, 0.0000) | ||
