STATUS: DONE

Previous sequence 51710C will nominally be aborted at command [17058]

MISSION SEQUENCE PLANNER REPORT

SEQUENCE DESCRIPTION

• Sol 18 Scenario

• Sequence 51810D (.pef file, viewable as text)
• Command-by-Command Description* (w/telemetry estimate)

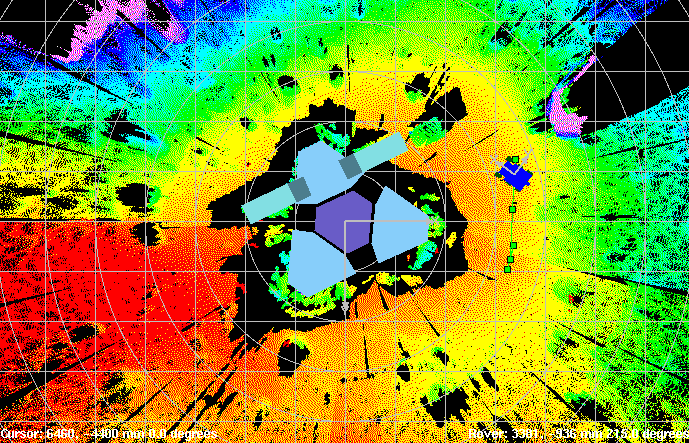

• Roverview Traverse Graphic

• Vehicle Positions:

  	X Position (m)	Y Position (m)	Heading (deg)
  At Sequence Start**	3.240	0.955	294.0
  At End of Sol 18* (predicted)	3.381	-0.936	215.0

  ** Vehicle positions are in surface-fixed frame
  * at completion of planned SOL's traverse activities assuming nominal execution

• Pointing for IMP Images of Rover:

  Image Type	X (m)	Y (m)	Z (m)	Imaging Opportunity
  End-of-Day Ops	3.255	-0.375	0.300
  End-of-Day Ops	3.106	-1.056	0.300
  End-of-Day Ops	5.686	-0.682	0.300
  End-of-Day Ops	5.405	-1.902	0.300
  S0054	3.528	0.944	0.300
  S0054	3.668	0.168	0.300
  S0053	3.528	-0.827	0.300
  S0053	3.270	-1.558	0.300


  Request four stereo pairs for EOD ops imaging

• Telemetry Volume Estimates

  • Sol 18 Downlink (by APID)
    Predicted telemetry volume generated between activation of sequence 51810D from nominal start to nominal abort [18127]

    Command Range Processed: First Command:[18001] Time Executed: 1248261607 203 11:20:00 10:01:20 Final Command:[18127] Time Executed: 1248339311 204 08:55:07 07:01:46 SUMMARY BY TELEMETRY APID:

    APID	Name	Predicted #Pkts	Predicted #Mbits
    4	Health Status	20	0.04656
    5	Ops/Engr	67	0.07298
    6	Sequence Status	3	0.00094
    7	Error Reports	0	0.00000
    8	Science Imaging	322	4.97549
    9	Technology Imaging	0	0.00000
    10	Lander Imaging	0	0.00000
    12	APXS Results	0	0.00000
    23	Priority Ops/Engr.	0	0.00000
    24	Auto Imaging	0	0.00000
    25	Ops Imaging	0	0.00000
    29	Traverse Reporting	9	0.11444
    	TOTAL	421	5.21042

  • 51810D Full Sequence until Nominal Abort (by APID)
  • 51810D RAIF Comment List (comments appear as skipped commands in telemetry stream)

  • 51810D Full Sequence Summary for PLAN-IT

SEQUENCE IMPLEMENTATION REPORT

• SEQUENCE EXECUTION ISSUES:

• SEQUENCE PLAN ASSESSMENT:
  Recommendations for Downlink Assessment Team
  1. None
  Flight Rules Waived:
  1. None
  Macros Modified:
  1. None
  Incorporation of EAT Operational Constraints (this sequence)
  (Copied from Sol 17 downlink report)

  Proceed with nominal sequence Operational Constraints (Sol 18 Sequence):

  1. Disable auto shutdown
  2. Set Modem Heat to 15 minutes; 10 minutes if following a night-time APXS)
  3. Set Modem Reheat to 5 minutes.
  4. Set alarm based wakeup on morning of Sol 16 for 08:00 LST
  5. Perform Read Memory just before last downlink session
  6. Leave X accelerometer ENABLED
  7. ENABLE Y accelerometer for long moves and waypoints, DISABLE for short, simple moves/turns.
  8. DISABLE Z accelerometer.
  Engineering Requests:
  1. Take pre and post S0050 images at Low-Compression (3:1).
  2. (DESIRE) Take rover images as early in the morning as possible to reduce dark noise current.
  3. (DESIRE) Leave rover on until 15:45 LST to collect late afternoon thermal data, perform health check just before shutdown.
  Operational Constraints (General):
  1. Perform level 2 health check at the end of every traverse command
  2. Perform Time Sync just prior to EOD shudown.
  3. Limit image transfer after 1:00 LST (to prevent overheating)
  4. Limit each "Move Command" distance to 1 meter or less to enable gyro to be recalibrated and thereby reduce the amount of drift.
  5. Insert longer wait (10 seconds) between APXS cycle start command and APXS turn-off command (turn off devices)
  6. Perform WEB heating on days of low activity (i.e. no traverses) from 12:00 (noon) to 15:00 MLST with temperature setting at 30 deg and if not performing night-time APXS (should be in runout sequences)

  Incorporation of Operational Constraints
  1. All taken into consideration
