STATUS: DONE

Previous sequence 53010C will nominally be aborted at command [30167]

MISSION SEQUENCE PLANNER REPORT

SEQUENCE DESCRIPTION

• Sol 32 Scenario
• Sol 33 Preliminary Scenario
• Sol 32 Long Range Plan

• Sequence 53210B (.pef file, viewable as text)
• Command-by-Command Description* (w/telemetry estimate)

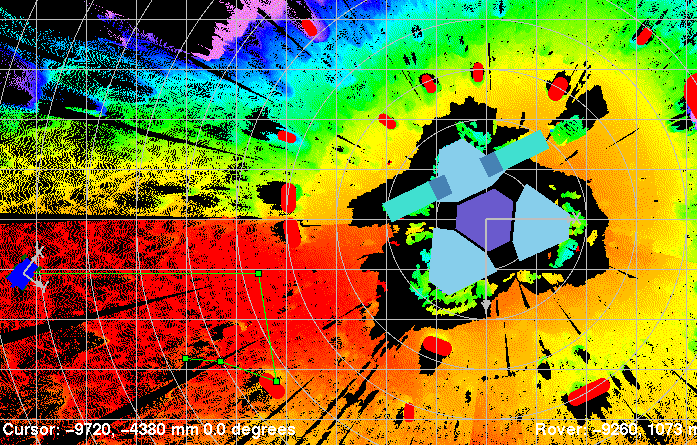

• Roverview Traverse Graphic

• Vehicle Positions:

  	X Position (m)	Y Position (m)	Heading (deg)
  At Sequence Start**	-6.024	2.778	4.9
  At End of Sol 32* (predicted)	-9.260	1.073	308

  ** Vehicle positions are in surface-fixed frame
  * at completion of planned SOL's traverse activities assuming nominal execution

• Pointing for IMP Images of Rover:

  Image Type	X (m)	Y (m)	Z (m)
  S0055	-18.360	1.530	0.74
  S0055	-17.526	5.663	0.74


  Request two stereo pairs for EOD ops imaging

• Telemetry Volume Estimates

  • Sol 32 Downlink (by APID)
    Predicted telemetry volume generated between activation of sequence 53210B from nominal start to nominal abort [32134]

    Command Range Processed: First Command:[29001] Time Executed: 1249326923 215 19:15:16 10:01:37 Final Command:[29201] Time Executed: 1249497314 217 18:35:13 08:05:30 SUMMARY BY TELEMETRY APID:

    APID	Name	Predicted #Pkts	Predicted #Mbits
    4	Health Status	27	0.06286
    5	Ops/Engr	128	0.11267
    6	Sequence Status	5	0.00142
    7	Error Reports	0	0.00000
    8	Science Imaging	198	3.09509
    9	Technology Imaging	194	3.06670
    10	Lander Imaging	0	0.00000
    12	APXS Results	2	0.01710
    23	Priority Ops/Engr.	0	0.00000
    24	Auto Imaging	0	0.00000
    25	Ops Imaging	116	1.76714
    29	Traverse Reporting	22	0.31437
    	TOTAL	692	8.43734

  • 53210B Full Sequence until Nominal Abort (by APID)
  • 53210B RAIF Comment List (comments appear as skipped commands in telemetry stream)

  • 53210B Full Sequence Summary for PLAN-IT

SEQUENCE IMPLEMENTATION REPORT

• SEQUENCE EXECUTION ISSUES:

• SEQUENCE PLAN ASSESSMENT:
  Recommendations for Downlink Assessment Team
  1. None
  Flight Rules Waived:
  1. None
  Macros Modified:
  1. None

Incorporation of EAT Operational Constraints (this sequence)
(Copied from Sol 29 ownlink report)

Operational Constraints (Sol 32 Sequence): Continue with nominal sequence plan.

1. Start SOL 30 sequence with '29001 Abort Sequence' command so that if 52910 was already received and executed, the SOL30 sequence (which should be a virtual repeat of SOL29) will be rejected
2. REMOVE explicit heating of modem prior to morning image transfer (superseded by maximum reheat temperature setting in "general constraints")
3. Continue to DISABLE hazard avoidance for stall conditions/hazards during Sol 27.
4. Leave X accelerometer ENABLED
5. Leave the Z accel DISABLED
6. DISABLE the Y accelerometer during waypoints and moves at risk level 1. ENABLE Y accel for waypoints and moves at risk level 2
7. Enable hazard avoidance using sensors, contacts, and laser proximity, and perform each waypoint command only once
8. If possible, health checks should not be skipped as a result of traversable hazards
9. Before beginning traverses, should back up a little (~ 10 cm) to enable lasers to detect hazards which may be very close to the front of the rover. UNMASK contact sensors for this move. May want to then move forward ~ 1 cm, with contact sensors MASKED to remove any contact that may have been made during the previous backward move. Then UNMASK all contact sensors and plan subsequent waypoints.
Engineering Requests:
1. Waypoint Navigation:
   • Continue to perform waypoint commands.
   • Take seperate S0055 images after each individual waypoint command.
   • Take S0050 (Rover Movie) of each individual waypoint command.
2. Take pre and post S0050 images at Low-Compression (3:1).
3. (DESIRE) Take rover images as early in the morning as possible to reduce dark noise current.
4. (DESIRE) Leave rover on until 15:45 LST to collect late afternoon thermal data, perform health check just before shutdown.

Operational Constraints (General):

1. Mask all errors (except INVALID CMD) immediately prior to "Read Mem" of persistent state table. Unmask accordingly immediately afterwards.
2. Set Modem Reheat to 5 minutes and maximum modem reheat temperature 30 deg.
3. If need to perform Level 3 health checks between Sol n, 20:00 LST and Sol n+1,8:00 LST, disable lasers (i.e., never power) to prevent them from being turned on. Re-enable afterwards.
4. Terminate heating at 15:00
5. Disable auto shutdown
6. Set Modem Heat to 15 minutes; 10 minutes if following a night-time APXS)
7. Set alarm based wakeup to 08:00 LST
8. Perform Read Memory just before last downlink session
9. DISABLE RF Wheel Temperature Sensor
10. DISABLE Z accelerometer.
11. Perform Time Sync just prior to EOD shudown.
12. Always command a Level 2 Health Check before shutdown.
13. Perform level 2 health check at the end of every traverse command
14. Limit image transfer after 1:00 LST (to prevent overheating)
15. Limit each "Move Command" distance to 1 meter or less to enable gyro to be recalibrated and thereby reduce the amount of drift.
16. Insert longer wait (10 seconds) between APXS cycle start command and APXS turn-off command (turn off devices)
17. Perform WEB heating on days of low activity (i.e. no traverses) with no night-time APXS operations, and Runouts from 13:00 (noon) to 15:00 MLST.
18. Use Web_Heat_B parameter with Max temp of 30C.
19. Future soil mechanics experiments in suspected hard material should have 6 spins of 500 counts rather than 4.

Incorporation of Operational Constraints
1. All taken into consideration
